Grande has a cost-effective, portable solution for the complete prefabricated camp site works to set up, to assist clients such as rescue operations, and non-governmental organizations, and other customers who require a prefabricated, relocatable building for use in remote locations.
Grande offers customized products that help keep occupants safe in some of the toughest and most dangerous places around the world.
Grande flat pack modular solutions are also widely used by private and public companies for temporary or permanent, easy to set up workspaces, infrastructure buildings, and other construction applications.
Folding Container Parameters
| Supporting equipment: | Parameters: |
| Wall: Thermal insulation rock wool color steel composite sandwich panel. | Roof bearing: 50 Kg/m² Floor bearing capacity: 150 kg/m² |
| Floor: Adopt A-glass Fire-proof board. | Walkway bearing capacity: 200 kg/m². Wall side pressure: 80 kg/ m². |
| Windows: The window adopts push-pull series made of aluminum alloy for anti-theft. | Wall deformation coefficient: 300 kg/ m² |
| Security door: Anti-theft Steel door is to be used. | Fire resistance rating: Grade A fire resistance, |
| Electrical system: circuit protector, five-hole socket, LED lamp, air conditioning socket, light switch. | Anti Earthquake: 10 Grade. |
| Top: 104 type color steel tile is used for the outer top, and 831 type ceiling tile is used for the inner top. | Anti- wind resistance rating: 11 wind resistance rating |
Product Details
| Classification | Heading | Specification |
| Size | Length | 5800mm |
| | Width | 2500mm |
| | Height | 2450mm |

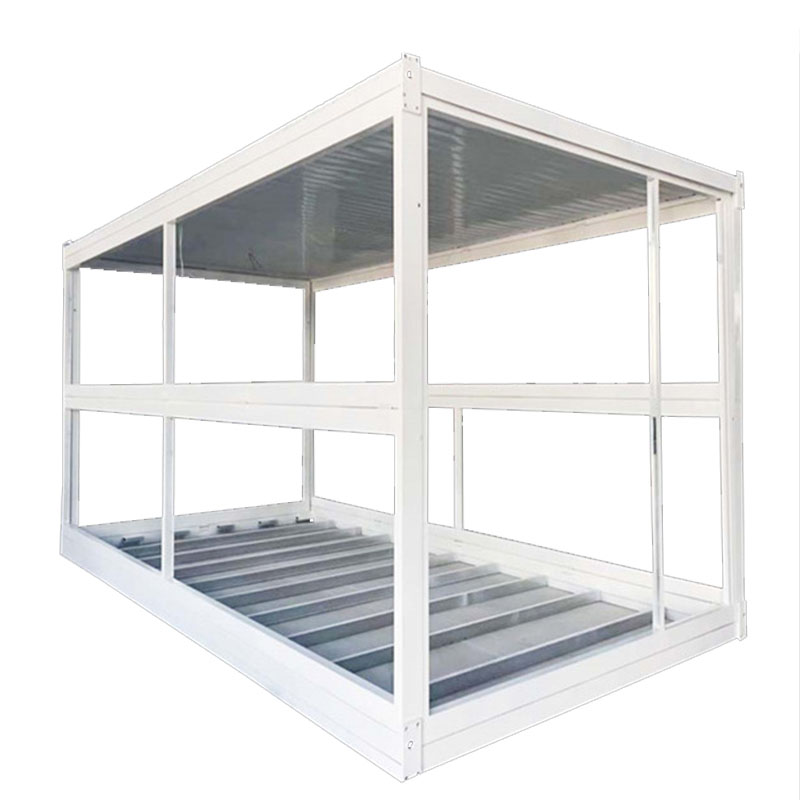

| Steel Structure | Pillar | Galvanized pipe |
| | Beams | Galvanized pipe |
| Board | Roof | 14.5㎡ thermal insulation rock wool |
| | Wall | 50mm thermal insulation rock wool color steel plate |
| | Ground | 15mm A-class fire-resistant cloth board |
| Accessories | Window | 950mm*1200mm aluminum alloy anti-theft integrated |
| | Door | 860mm*1980mm special anti-theft door for folding box |
| Paint | Integral frame protective coating | Carpoly High Gloss Enamel |
Characteristical
- Fast installation speed (3-5 minutes for completing the installation).
- The whole steel structure is made of Q235B galvanized material
- The whole wallboard adopts thermal insulation rock wool color steel
Advatage
Safe Using
The installation is convenient and fast. The front and rear door are designed to be pulled up. Engineer will be outside when the house be installed. The safety factor reaches the highest index. It can be very convenient for installation and save time and labor.
Technical Details
Customer display
FAQ
Q. Are you the manufacturer or the trading company?
A.We are factory
Q. What products do you offer?
A. We focus on prefabricated houses, such as labor camp, container house, steel structure warehouse, modular office.
Q. What is your payment term?
A. Our payment term : for standard products 30% deposite, the banlance should be paid before delivery.
( for Customized products,will depend on the design. )
Q. What is your MOQ (minimum order quantity) ?
A. for standard products, we don't have MOQ quantity.
Q. How is your after-sales service?
A. 1. 24 hours available after-sales service.
2. For the installation, we will offer installation drawing and videos, if any questions we can reply in time. We can also can send our engineer to guide local workers, but you have to charge the double ticket, accommodation, food and salary.
Q: How much is the price of the folding container? Is there a discount for bulk purchase?
A: Please contact us for specific information, we will have someone to answer:
Mailbox: foldingcontainerhome@outlook.com
