Thermal Insulated Temporary Prefab Folding Container House Office

Grande Modular Housing (Anhui) Co., Ltd.
Contact Now

Thermal Insulated Temporary Prefab Folding Container House Office

  • 1
  • 2
  • 3

Brand Name : Grande

Model Number : A001

Certification : CE

Place of Origin : Hefei China

MOQ : 12 Sets

Payment Terms : T/T, L/C

Supply Ability : 100SETS FOR ONE DAY

Delivery Time : 10 days after payment

Packaging Details : Plastic Film with Contact Roller

safety : shockproof

Scene : military area , household, etc.

shipping country : any country in the world

Open Size : 5.8L*2.5W*2.45H (Empty house) 12sets/40HQ

Steel structure : Galvanized steel

Roof : 60kg/m³ insulation rock wool wool +Steel sheets

Contact Now

Grande offers customized products that help keep occupants safe in some of the toughest and most dangerous places around the world.
Grande modular solutions are also widely used by private and public companies for temporary or permanent, easy to set up workspaces, infrastructure buildings, and other construction applications.

Folding Container Parameters

Supporting equipment: Parameters:
Wall: Thermal insulation rock wool color steel composite sandwich panel. Roof bearing: 50 Kg/
Floor bearing capacity: 150 kg/
Floor: Adopt A-glass Fire-proof board. Walkway bearing capacity: 200 kg/.
Wall side pressure: 80 kg/ .
Windows: The window adopts push-pull series made of aluminum alloy for anti-theft. Wall deformation coefficient: 300 kg/
Security door: Anti-theft Steel door is to be used. Fire resistance rating: Grade A fire resistance,
Electrical system: circuit protector, five-hole socket, LED lamp, air conditioning socket, light switch. Anti Earthquake: 10 Grade.

Product Details

Classification Heading Specification
Size Length 5800mm
Width 2500mm
Height 2450mm
Steel Structure Pillar Galvanized pipe
Beams Galvanized pipe
Board Roof 14.5㎡ thermal insulation rock wool
Wall 50mm thermal insulation rock wool color steel plate
Ground 15mm A-class fire-resistant cloth board
Accessories Window 950mm*1200mm aluminum alloy anti-theft integrated
Door 860mm*1980mm special anti-theft door for folding box
Paint Integral frame protective coating Carpoly High Gloss Enamel

Characteristical

  • The whole wallboard adopts thermal insulation rock wool color steel
  • The cabinet floor is made of 15mm glass magnesium plate for fireproof and moisture-proof.
  • Anti-theft Steel door is to be used. Composite sandwich panel which can reach A-class fire prevention.
  • The roof is also covered with grade a fireproof rock wool.

Advatage

Safe Using

The installation is convenient and fast. The front and rear door are designed to be pulled up. Engineer will be outside when the house be installed. The safety factor reaches the highest index. It can be very convenient for installation and save time and labor.

Thermal Insulated Temporary Prefab Folding Container House Office

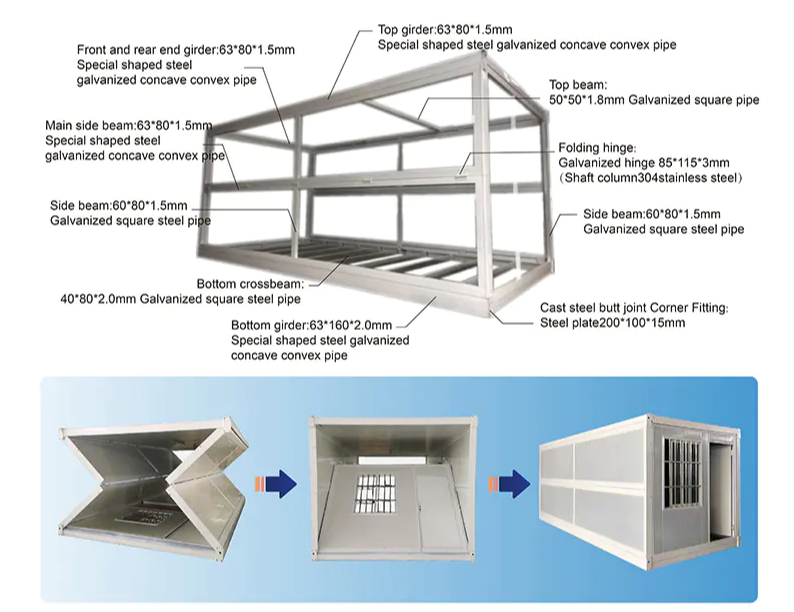

Technical Details

Thermal Insulated Temporary Prefab Folding Container House Office

Thermal Insulated Temporary Prefab Folding Container House Office

Customized concave-convex galvanized heterosexual rectangular tube frame

The entire frame profile of the folding box is formed at one time by large-scale high-frequency welding equipment. All its joints are designed with concave and convex bites, which have excellent sealing performance and are windproof, leakproof and rainproof. The concave and convex design is seamlessly spliced, The fuselage does not need glue bonding, the sealing performance is strong, and it can be folded and used repeatedly.

Thermal Insulated Temporary Prefab Folding Container House Office

FAQ

Q. Are you the manufacturer or the trading company?

A.We are factory

( for Customized products,will depend on the design. )

Q. How is your after-sales service?

A. 1. 24 hours available after-sales service.

2. For the installation, we will offer installation drawing and videos, if any questions we can reply in time. We can also can send our engineer to guide local workers, but you have to charge the double ticket, accommodation, food and salary.

Q: How much is the price of the folding container? Is there a discount for bulk purchase?

A: Please contact us for specific information, we will have someone to answer:

Mailbox:foldingcontainerhome@outlook.com
