Thermal Insulated Folding Container Home Site Office Anti Earthquake

Grande Modular Housing (Anhui) Co., Ltd.
Contact Now

Thermal Insulated Folding Container Home Site Office Anti Earthquake

  • 1
  • 2
  • 3

Brand Name : Grande

Model Number : A019

Certification : CE

Place of Origin : Hefei China

MOQ : 12 Sets

Payment Terms : T/T, L/C

Supply Ability : 100SETS FOR ONE DAY

Delivery Time : 10 days after payment

Packaging Details : Plastic Film with Contact Roller

Roof/Wall Material : Polyurethane foam

Adhesive method : High precision pressing

Installation Time : 3~5 minutes

Service Life : more than 15years

Floor : Insulation rock wool

Material : 104 color steel tile, 831 ceiling tile, shaft column 304 stainless steel, galvanized steel

Window : Aluminum alloy anti-theft integrated window

Keyword : container house,Portable house,folding house,modern folding prefab houses/fold up Australian granny flat,steel frame mobile units  malaysia

Contact Now

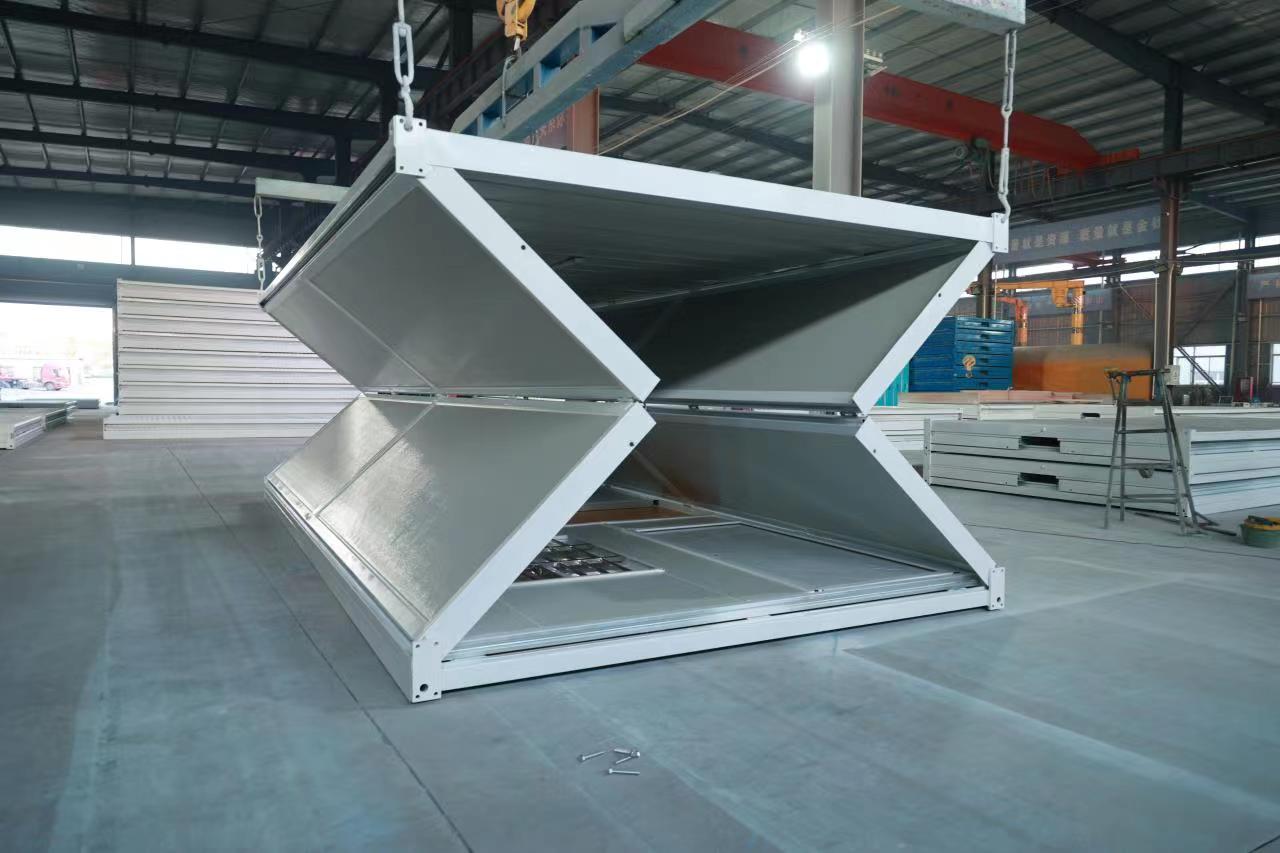

Folding Container Home: Step into a modern and space-saving living solution with Folding Container Home. Its foldable design maximizes the efficient use of space, offering a compact yet functional dwelling. Whether used as a primary residence, vacation home, or additional living space, it provides convenience and adaptability for a variety of needs.

Folding Container Parameters

Supporting equipment:

Parameters:
Wall: Thermal insulation rock wool color steel composite sandwich panel.

Roof bearing: 50 Kg/m²

Floor bearing capacity: 150 kg/m²

Floor: Adopt A-glass Fire-proof board.

Walkway bearing capacity: 200 kg/m².

Wall side pressure: 80 kg/ m².

Windows: The window adopts push-pull series made of aluminum alloy for anti-theft.

Wall deformation coefficient: 300 kg/ m²

Security door: Anti-theft Steel door is to be used.

Fire resistance rating: Grade A fire resistance,

Electrical system: circuit protector, five-hole socket, LED lamp, air conditioning socket, light switch.

Anti Earthquake: 10 Grade.

Top: 104 type color steel tile is used for the outer top, and 831 type ceiling tile is used for the inner top.

Anti- wind resistance rating: 11 wind resistance rating

Product Details

Classification Heading Specification
Size Length 5800mm
Width 2500mm
Height 2450mm
Steel Structure Pillar Galvanized pipe
Beams Galvanized pipe
Board Roof 14.5㎡ thermal insulation rock wool
Wall 50mm thermal insulation rock wool color steel plate
Ground 15mm A-class fire-resistant cloth board
Accessories Window 950mm*1200mm aluminum alloy anti-theft integrated
Door 860mm*1980mm special anti-theft door for folding box
Paint Integral frame protective coating Carpoly High Gloss Enamel

Advatage

Storage

Our container room can store more than 10 sets, which greatly saves the storage area and the site use cost.

Thermal Insulated Folding Container Home Site Office Anti Earthquake

Safe Using

The installation is convenient and fast. The front and rear door are designed to be pulled up. Engineer will be outside when the house be installed. The safety factor reaches the highest index. It can be very convenient for installation and save time and labor.

Thermal Insulated Folding Container Home Site Office Anti Earthquake

Technical Details

Thermal Insulated Folding Container Home Site Office Anti Earthquake

Thermal Insulated Folding Container Home Site Office Anti Earthquake

Thermal Insulated Folding Container Home Site Office Anti Earthquake

Q: How long does it take to assemble a Folding Container House?

A: The assembly time for a Folding Container House varies based on size and complexity, typically ranging from a few hours to a few days.

Q: What materials are used in the construction of Folding Container Houses?

A: Folding Container Houses are typically constructed using high-quality steel frames and durable, weather-resistant materials such as reinforced steel panels and insulated wall panels.

Q: Can a Folding Container House be customized?

A: Yes, Folding Container Houses offer customization options including size, layout, interior design, and additional features such as windows, doors, and insulation to meet specific requirements.

Q: Can Folding Container Houses be stacked or combined to create larger structures?

A: Yes, Folding Container Houses can be stacked vertically or combined horizontally to create multi-story or interconnected structures, allowing for versatile architectural designs and expanded living spaces.

Q: How durable are Folding Container Houses?

A: Folding Container Houses are highly durable, engineered to withstand various environmental conditions, including corrosion resistance, stability, and the ability to endure extreme temperatures, wind, and seismic forces.

Q: Can Folding Container Houses be used for commercial purposes?

A: Absolutely, Folding Container Houses are suitable for various commercial applications such as offices, retail stores, hospitality accommodations, classrooms, clinics, and disaster relief shelters due to their flexibility and quick setup capability.
